Fig. 2 | BMC Oral Health

Fig. 2

From: The role of 25-hydroxyvitamin-D3 and vitamin D receptor gene in human periodontal ligament fibroblasts as response to orthodontic compressive strain: an in vitro study

Fig. 2

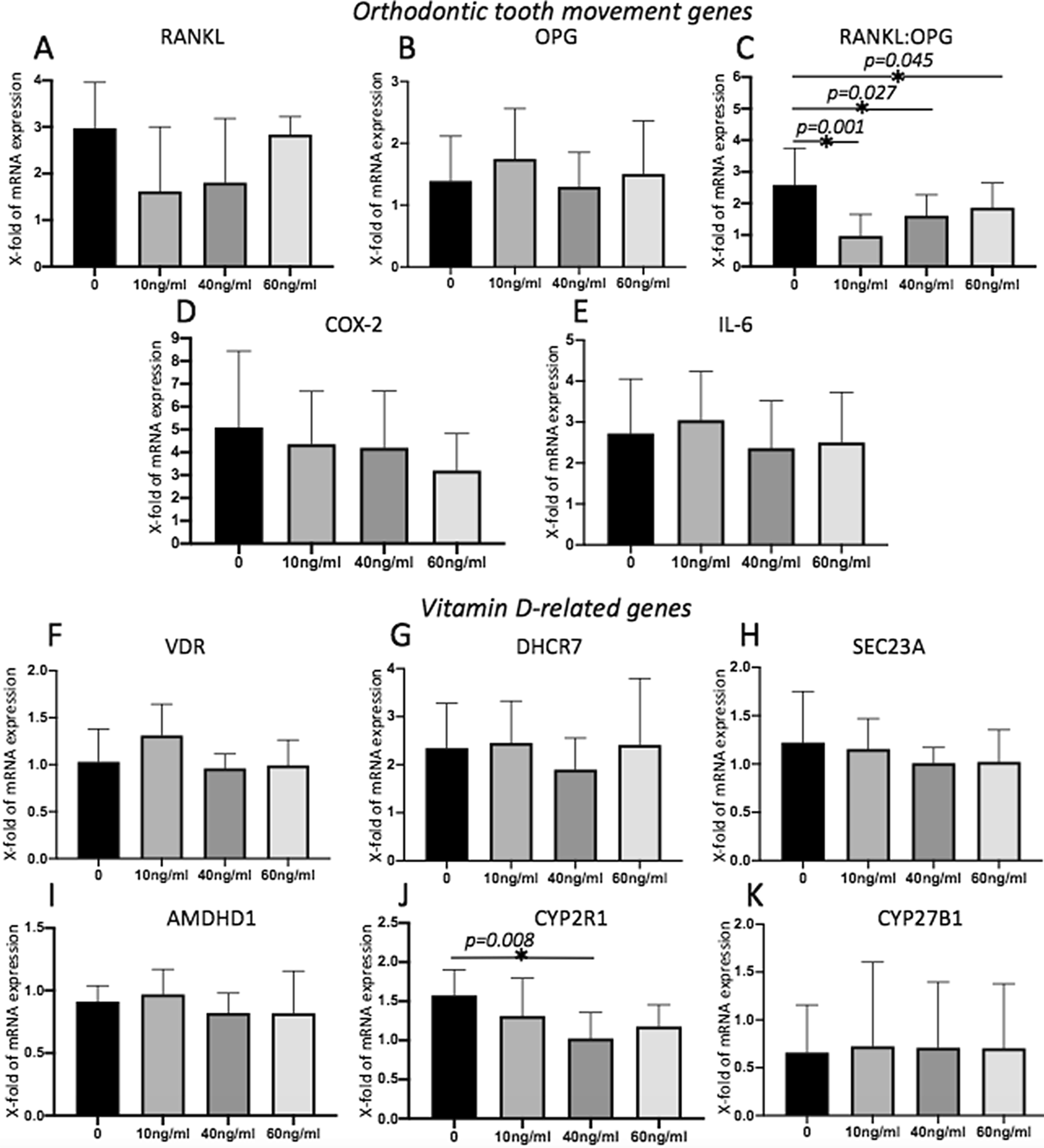

Effects of different concentrations of 25(OH)D3 during simulated orthodontic compressive strain on the relative mRNA genes expression levels. A Relative RANKL mRNA expression. B Relative OPG mRNA expression. C Relative RANKL:OPG ratio mRNA expression. D Relative COX-2 mRNA expression. E Relative IL-6 mRNA expression. F Relative VDR mRNA expression. G Relative DHCR7 mRNA expression. H Relative SEC23A mRNA expression. I Relative AMDHD1 mRNA expression. J Relative CYP2R1 mRNA expression. K Relative CYP27B1 mRNA expression. *On the top of the bars means statistically significant difference (p < 0.05)

Back to article page
